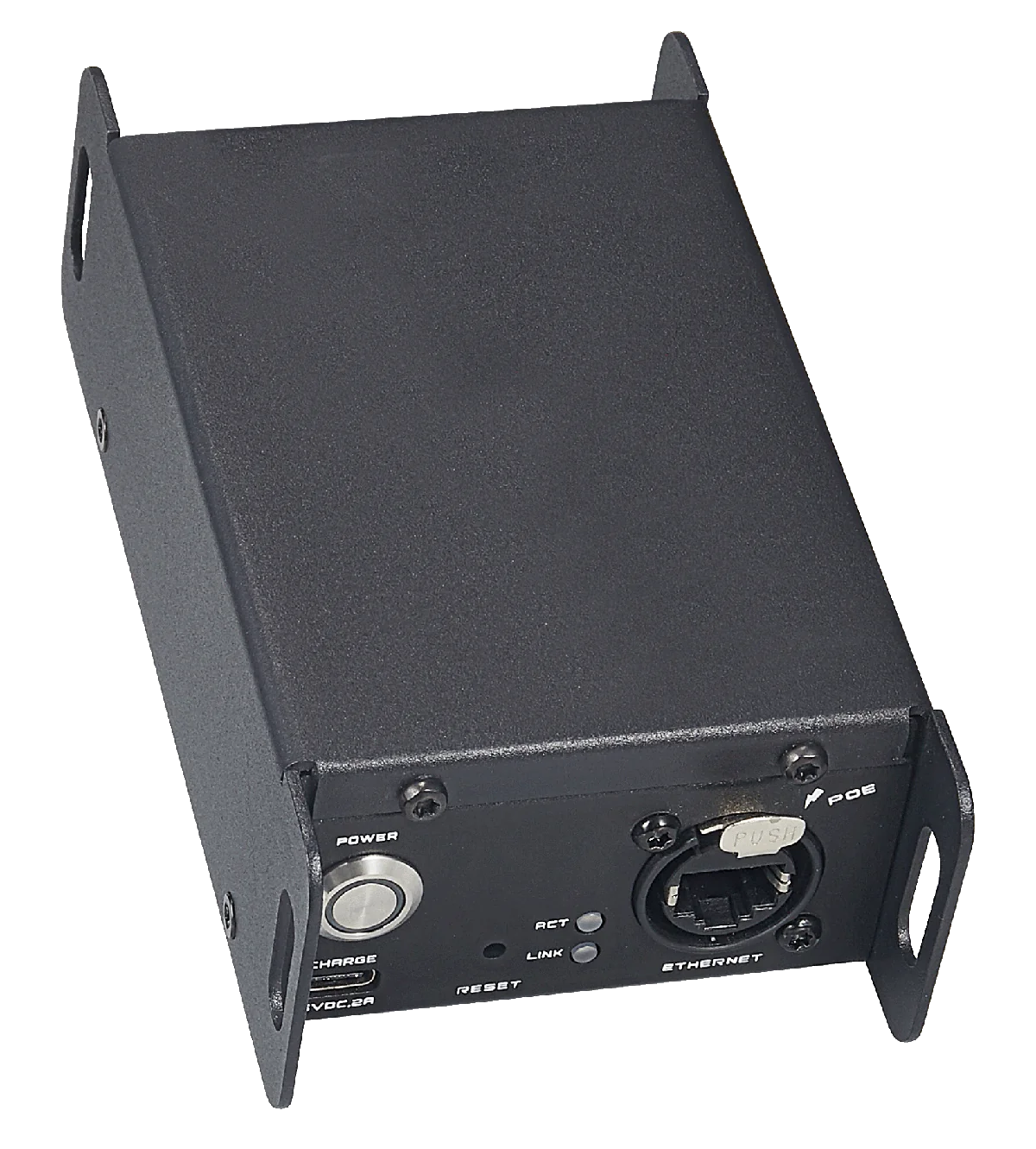

Artnet Controller 2
Order Code: AD2
Description

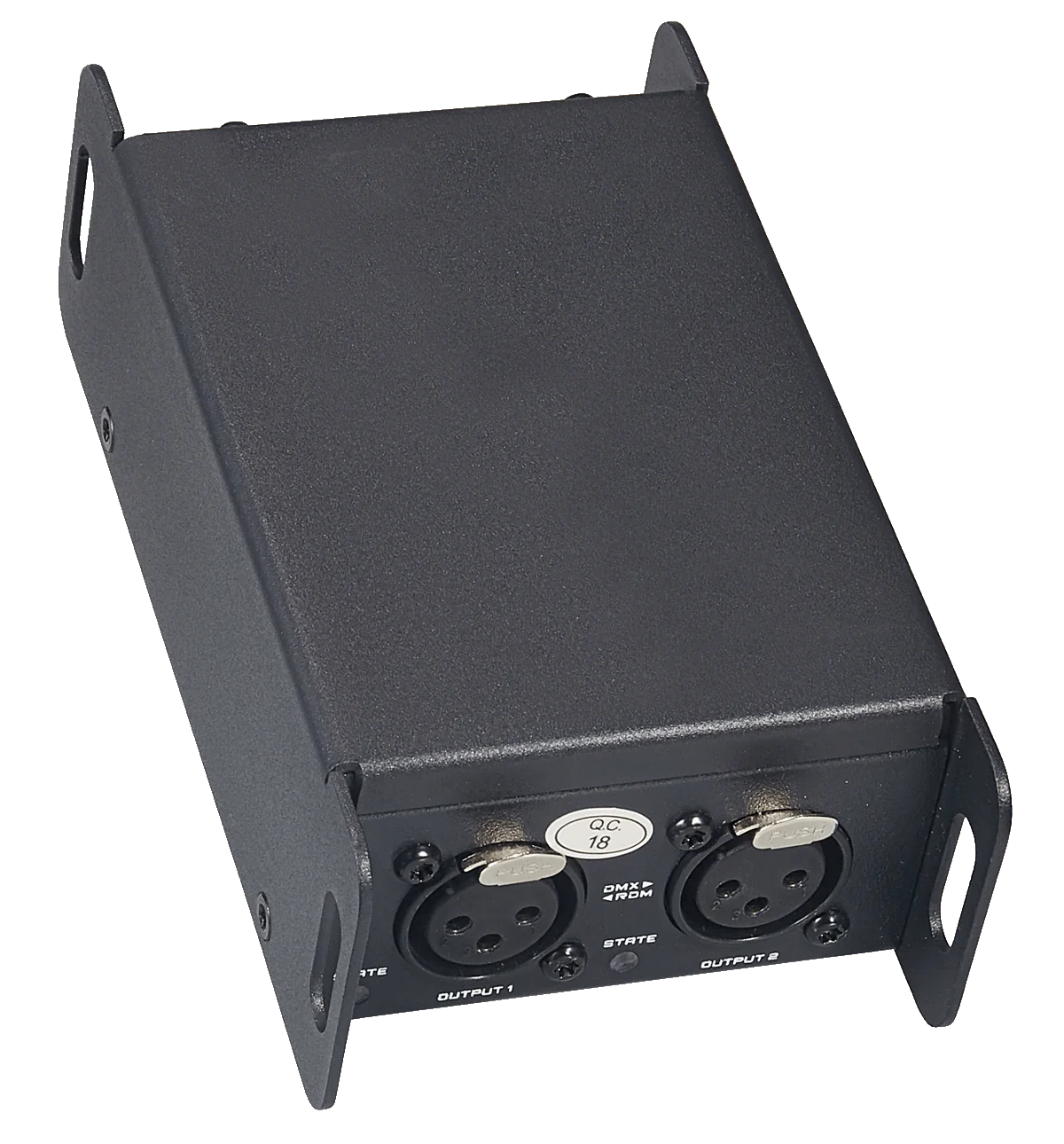

- DMX:2x shielded&gold plated 3-pin XLR(female)
- Network:1*10/100 Mbps RJ45 connector
- Power supply:9-12V DC
- Support Agreement:DMX512,RDM(selected)ANSI E1.20
- DMX port direction:input or outputconfigurable)
- DMX port protection:built-in 1.5kv
- DMX Port Match/Offset:yes
- DMX Parameters:Frame Frequency:10-40fps/Break:176-352μs
- Support agreement:Art-Net,UDP,TCP,ICMP,DHCP
- Port rate:10/100Base TX
- Port datection:auto-negotiation,MDI/MDIX
- Configuration management software:search found
- WEB configuration:support
- Ethernet port indication:connection and activity
- Run:LED indication
- Weight:260g
- Size: 11*9*5cm
