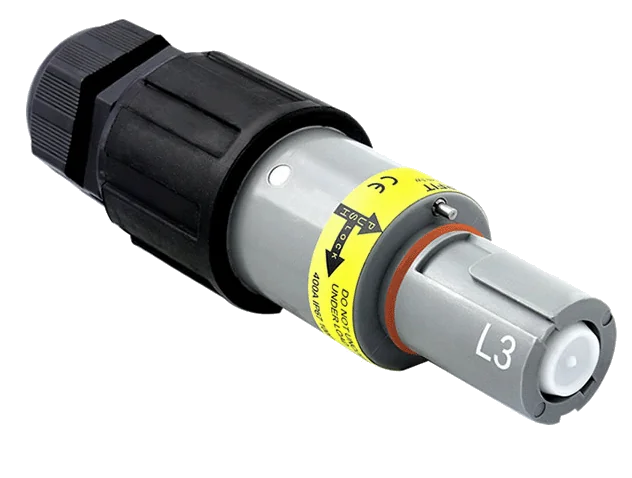

LINE DRAIN 400A
Order Code: PS400A
Description
1. Innovative and key releasing pin delivers great convenience while uncoupling.
2. POM cotter pin for excellent insulation.
3. M40*1.5 cable gland with bushing for IP67.
4. Rubber bushing I.D.18 mm or 26 mm for gripping cable.
5. Brass with silver-plated for superior conductivity.
6. Silicon O-ring provides upmost airtight-alike mating.
7. Non-conductive high impact-resistant thermoplastic for max durability and safety
8. Ergonomic rubber grip offers comfort and easier handling.
Technical Information
Current Rating: 400A continuous with 120mmsq cable.
Withstanding Voltage: 1000Vac.
Test Voltage: 4500Vac.
Short Circuit Rating: Up to 35.5kA.
Insulation Resistance: >5000 M Ohms at 500Vac.
Contact Resistance: 0.1m Ohms.
IP rating while mated: IP67.
Contact Material: Brass with silver plated
Housing Material: High Impact Resistant Thermoplastic.
Cotter Pin Material: POM.
Working Temperature: 45 to 85 Degree C
Contact Type: Set Screw.
Set Screw Torque on Brass Contact: 10.5 N/meter (minimum required).
Mating Cycle: 500 /
Flammability: UL94-V0.
CE and RoHS compliant.
